RFCN-332

Long range datalink SD Rradio 2*2w

RadioForce series radios, based on SDR architecture

Can be loaded with different waveforms to meet the diverse needs from different users

RFCN-332 series support mesh mode, point-to-point and point-to- multipoint modes. IAS( Interference avoidance scheme) is supported

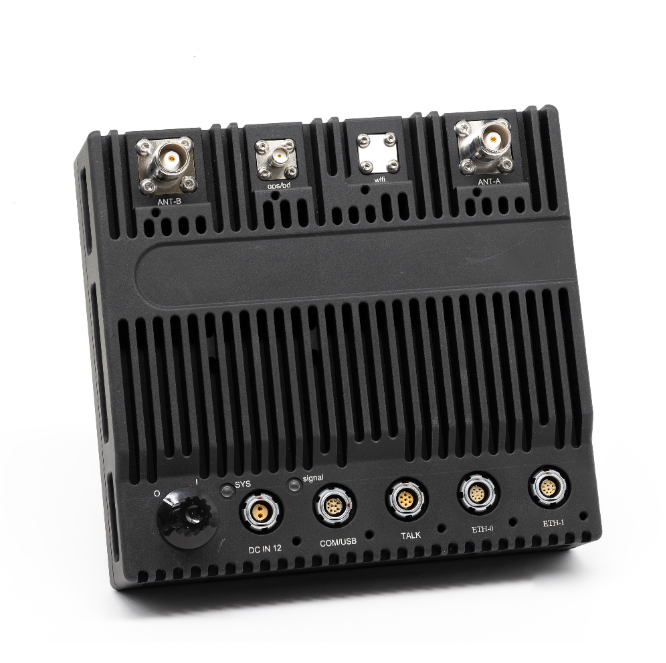

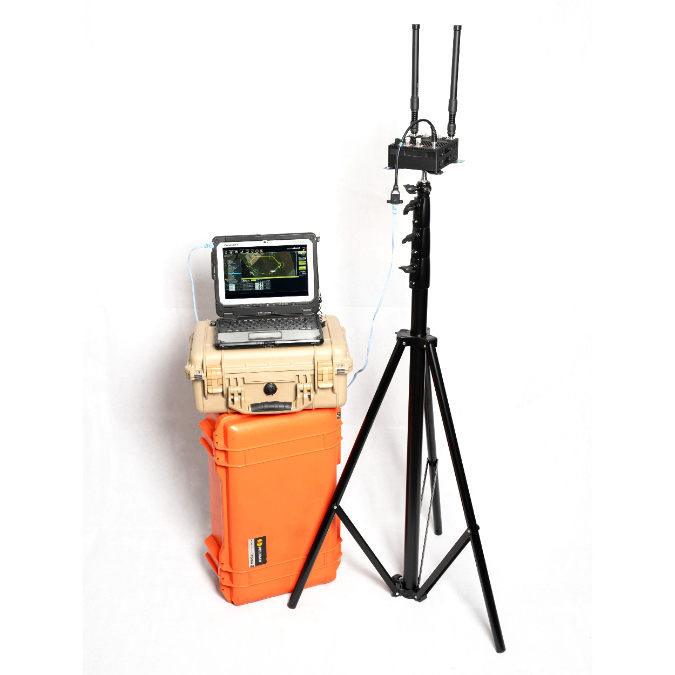

RFCN-332 is a 2 antennas radio, RF power=2w/channel, it is ideal for network building in complicate environment. Rich interfaces are provided, which can realize communication of data, video and audio. Applicationscenarios：situation awareness system, datalink for Man-Unmanned teaming

Communication performance

Waveform	cofdm
Topology	Ad hoc network, point-to-point, point- to-multipoint
TX power	*33dBm2 channels**
Frequency	U/L/S/C customizable
RX sensitivity	-108dBm@bandwidth=1.25MHz
Bandwidth	From 1.25MHz to 20MHz
Data Throughput	@10MHz： up to 30Mbps (Diversity) up to 60Mbps (MIMO) （License dependant） @20MHz（optioned）： up to 50Mbps (Diversity) up to 100Mbps (MIMO) （License dependant）
Network capacity	up to 64 nodes in a single network
Anti-interference	interference avoidance scheme,FHSS(license dependant)
LPD/LPI	Supports silent mode

Interface	*1eth, 1USB,1RS232, 1RS485,1talkback, 1TTL*
Power consumption	typical 16w
Sealing	IP67
Distance	LOS≥ 50km NLOS ≥ 1.5km

Power
Adapter	12.6v/60w
Consumption	Typical16w

Physical
Dimension（mm）	*15214040*
weight（g）	1290

Interface
RF	*TNC2， sma*2（option**）
USB	fischer7pin
COM	fischer10pin
Eth	fischer10pin
Talkback	fischer7pin
Video	fischer 10pin-helmet cam

Configuration

	Name	Quantity	P/N	Descriton	remark
1	Radio	1	RFCN-332	Radio itself
2	Spring antenna	2	LPA-TNC-2.5-S	2.5dB
3	GPS antenna	1	LPA-SMA-GPS	GPS,BD,GNSS
4	Eth cable	2	LPCA-ETH-RJ45	Circular connector-RJ45 socket
5	TALK cable	1	LPCA-TALK	102F 7 pin
6	Power adapter	1	LPCA-PWR-60w	12.6V, 5A
