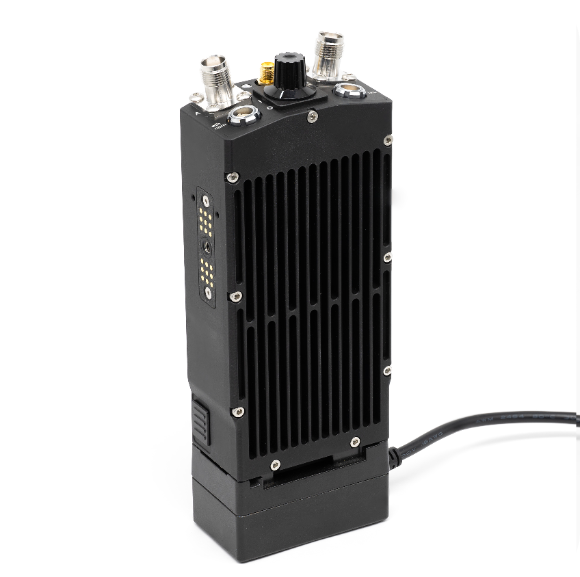

RFBW-302

Body worn radio module 2*1w

RadioForce series radios, based on SDR architecture

Can be loaded with different waveforms to meet the diverse needs from different users

RFBW-302 series support mesh mode, point-to-point and point-to- multipoint modes. IAS( Interference avoidance scheme) is supported

RFBW-302 handheld radio, designed in accordance with Mil standards, powered by a twist lock battery, battery life up to 8 hours. Rich interfaces are provided, which can realizes communication of data, video and audio. It is ideal for situation awareness system, and the datalink for Man-Unmanned teaming

Communication performance

Waveform	COFDM
Working mode	networking
Topology	Ad hoc network, point-to-point, point- to-multipoint
TX power	*30dBm2 channels**
Frequency	1300Mhz to 1500Mhz
RX sensitivity	-100dBm@bandwidth=5MHz
Bandwidth	1.25/2.5 / 5.0 / 10.0
Data Throughput	Peak rate up to 30Mbps (Diversity) Peak rate up to 60Mbps (MIMO) （License dependant）
Network capacity	up to 64 nodes in a single network
Interface	2 x Ethernet; 1 x RS232; 1 x RS485; 1 x TTL;GPSx1;
Power consumption	typical 12w
Sealing	IP67
Battery life	≥8 hours
Distance	LOS≥ 30km, NLOS ≥ 1km

Powersupply
Adapter	12V/60w
consumption	Typical8w

Physical
Dimension（mm）	*7040155*
weight（g）	500

Interface
RF	*TNC2**
eth	fischer 10pin
Talkback	fischer 7pin
Video	Fischer 10pin-helmet cam

Configuration

	Name	Quantity	P/N	Descriton	remark
1	Radio	1	RFBW-302	Radio itself
2	GPS antenna	1	LPA-SMA-GPS	GPS,BD,GNSS
3	battery	1	LP-KB	6.6AHs,twist lock
4	Spring antenna	2	LPA-TNC-2.5-S	2.5dB
5	Eth cable	1	LPCA-ETH-RJ45	Circular connector-RJ45 socket
6	Earphone	1	LPCA-PTE-300N	Circular connector-earphone
7	Charger	1	LPCA-KC	12.6V, 3A
8	Side connector	1	LPCA-SC	side connector-eth/232/485/TTL
9	Twistlock adapter	1	LPCA-KA	12.6V, 60W
